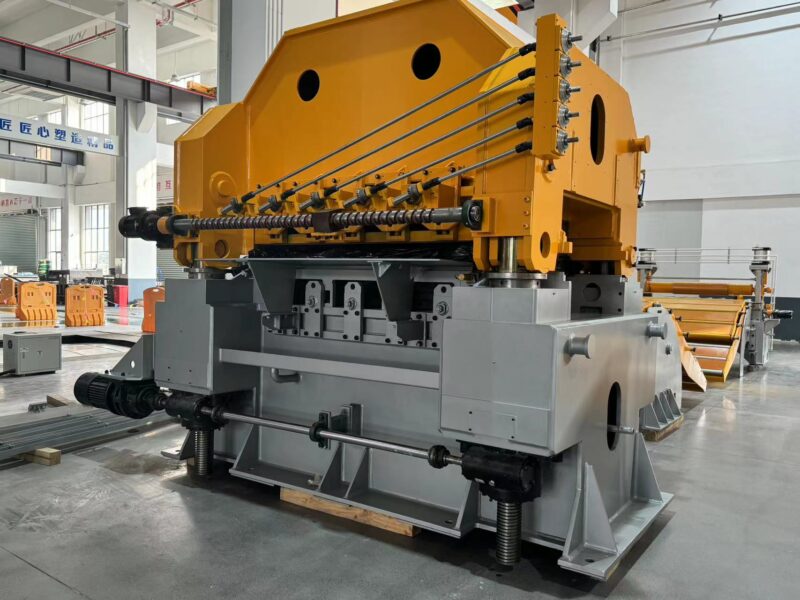

Japanese Technology Flying Shear Cut to Length Line
Designed with Japanese technology, this stainless steel flying shear cut to length line machine has the top level quality with following functions:
- Hydraulic automatic knife unloading and locking
- Knife gap auto adjustment by electric
- 6 Hi Precision Leveler with strong roller support unit, roller auto cleaning device
- Intelligent braking device
- Flexible stacking
- Surface defect detection
This flying shear cut to length line machine is specially designed for stainless steel coil, with thickness 0.3-3.0mm, coil width 1600mm, coil weight 20ton maximum.The whole line speed can reach 80m/min maximum.
