5-14 x 2000mm High Precision Slitting Line, India

Now factory has one set (5-14)x2000mm steel coil slitting line machine in production for our Indian customer now. This line is designed for hot rolled/ cold rolled carton steel, galvanized steel, of thickness 5-14mm, coil width 2000mm, coil weight maximum 40tons. With double ratios hydraulic switch design, the slitting speed can be adjusted from 30m/min to 60m/min. The whole slitting line machine is composed of 40ton double mandrel decoiler, gantry type coil end guide, pressing&shoveling device, double roller pinch& five roller leveler, coil end shear device, side aligning device, disc slitting device, scrap winder, pre-separator, five roller tensioner, deflector encoding roller, recoiler, hydraulic system, PLC control system, etc.

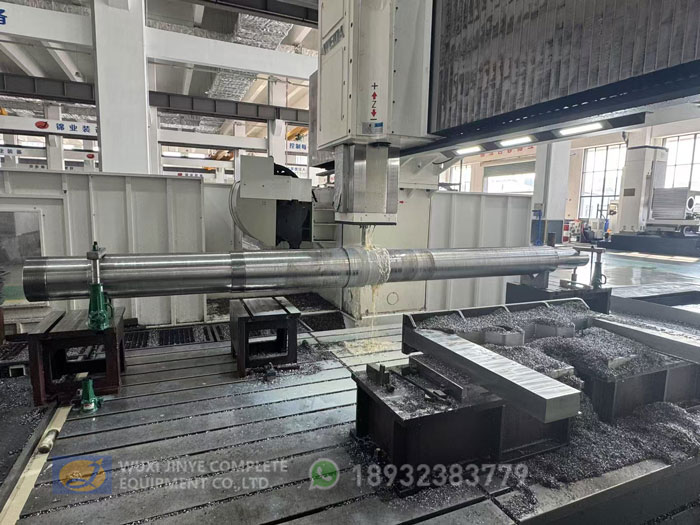

Equipped with advanced 4-axis machining centers which can produce the work piece maximum size of 6 meters long x 3 meters wide, we make one time machining for the keep important parts of all the shafts for decoiler, slitting, and recoiler, which ensure high precision of the final machine.

JINYE has been building coil slitting lines and cut to length lines in Wuxi, China since 2000, and supplies customers in more than 100 countries.

Tell us your coil thickness, strip width and target output, and we will come back with a line configuration and a price.
