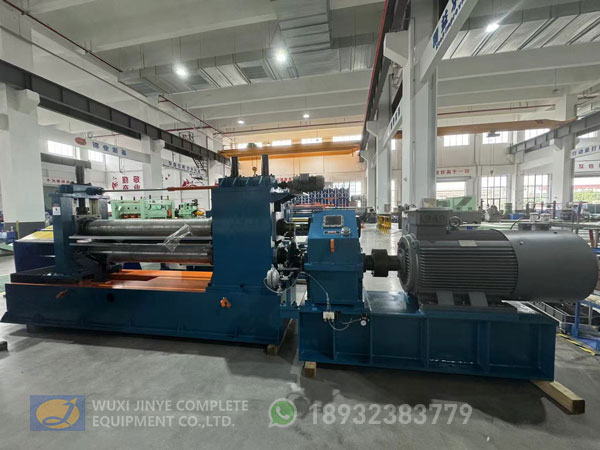

0.4-4 x 1600mm High Precision Slitting Line, Iran
This slitting line is made for Iran old customer, the line is design for steel coil thickness 0.4-4.0mm, coil width maximum 1600mm, with coil weight 20tons. Design with slitting speed 120m/min, this slitting line is composed of 20 ton decoiler with coil car, coil head pressing and shovel device, 2+5 leveler, loop pit 1, side guide, main slitter, scrap winder, loop pit 2, pre- separator, tensioner, Recoiler, hydraulic system, and PLC control system. It can slitting different coil strip width , and minimum slitting width of 20mm.
JINYE designs and builds coil slitting lines and cut to length lines at its works in Wuxi, China, test-running every line as a complete unit before shipment. The company has been building coil processing equipment since 2000 and sells in over 100 countries.
Share your coil thickness, width and target output and our engineers will propose a line configuration with a price.
