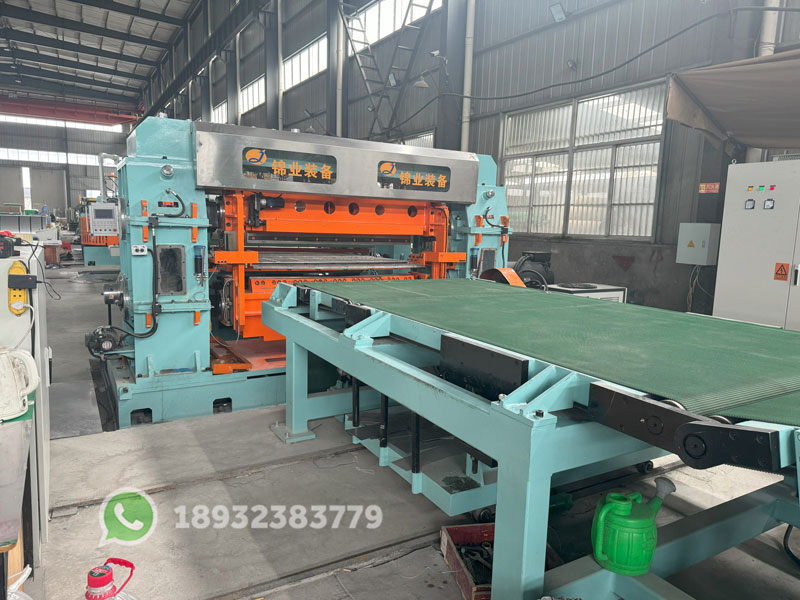

0.3-3×1500 Stainless Steel Flying Shear cut to length machine
Every line is configured around the incoming coil, the material grade and the finished product you need to ship. Send your specification and we will size the machine to it.
- Machine type
- Cut to length Line
- Working range
- 0.3–3 mm × 1500 mm
- Build
- Custom, built to order
Email slittingline@foxmail.com Phone +86 189 3238 3779
0.3-3×1500 Stainless Steel Flying Shear cut to length machine is specially designed to cut to length of stainless steel coil with thickness 0.3-3mm, and width maximum 1500mm.
Machine Advantage of Flying Shear Cut to Length Machine
1.The flying shear/ rotary shear is specially suitable for short length sheets cutting, although the extremely short sheets take more time to precisely track and cut, its cutting frequency still can be around 100pcs/min.
2)Thin sheet can be easily cut in one fast stroke, thus rotary shear or fly shear is available: the sheet runs at stable speed, fly shear fast cut off a sheet while synchronously tracking the running sheet, the track cutting process takes about 0.5s, max cutting frequency can be up to 150 times/min. The maximum cutting speed can be 80m/min

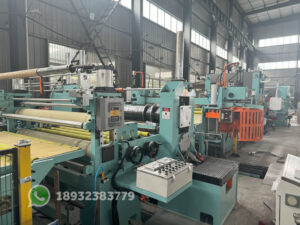

Machine List of Rotary Shear Cut to Length Machine
1.Coil preparing saddle, coil-loading car
2) Single Mandrel uncoiler with coil head press roller
3) Coil-head straightening and shoveling device

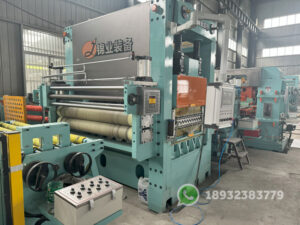

4) Double pinch rolls & 5-roller Leveler and coil head shear
5) First pit accumulator
6)Side guide before slitter
7) Edge Slitter
8) Edge scrap winder
9) Second pit accumulator
10) 6Hi Leveler
11) Pinch Length Fixer
12) Rotary Shear
13) Conveyor Belt

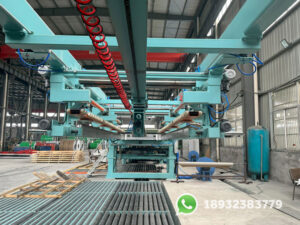

14) Dual stack
13)Hydraulic system, Pneumatic system
14)Electric control system
Specification of 0.3-3×1500 Stainless Steel Flying Shear Cut to Length Machine
1) Raw material
| No | Name | Technical Parameter |
| 1 | Material | Stainless Steel |
| 2 | Thickness | 0.3-3.0mm |
| 3 | Coil width | 200-1500mm |
| 4 | Coil outer diameter | ≤Φ2000mm |
| 5 | Coil inside diameter | Φ508mm |
| 6 | Coil weight Maximum | 25T |
| 7 | tensile strength | σb ≤780N/mm2 |
| 8 | yield strength | σb ≤700N/mm2 |
2)Finished Product
| No | Name | Parameter |
| 1 | Cutting length | 300-4000mm |
| 2 | Cutting length tolerance | L=2m≤±0.3mm (2.0mm) |
| 3 | Diagonal tolerance | L=2m≤±0.5mm (2.0mm) |
| 4 | Leveling accuracy | ≤± 1.2mm/m2 |
3)Machine Parameter
| No | Name | Parameter |
| 1 | Line speed | 0~80m/min(stepless speed regulation) |
| 2 | threading speed | 0~15m/min |
| 3 | Cutting pieces | 2000mm , 2.0mm≤40 pcs/ min |
| 4 | Power supply | 380V/50Hz/3Ph |
| 5 | Total power | about 500Kw |
| 6 | Operators required | 2-3 workers |
| 6 | Space area | Length 48m× Width 11m |
| 7 | Running direction | Left to right |
| 8 | Machine color | As per customer requirement |
Q & A
1.Q: What coil sizes does this line accept?
A: 0.3-3 mm thick stainless coil up to 1500 mm wide, which covers the standard 1250 mm and 1500 mm mill widths without pre-slitting.
2.Q: How many sheets per minute?
A: Around 100 cuts per minute, holding even when sheet length is short. That is the main advantage of cutting on the fly rather than stopping the strip for each cut.
3.Q: What makes it suitable for thin stainless?
A: The flying shear cuts during travel, so blade and strip move together and the surface is not marked. Thin stainless shows any stop-start mark, which is why this configuration is standard for the gauge.
4.Q: What is the line made of?
A: Uncoiler, pinch rolls and leveler, loop pit, the flying shear, run-out conveyor and stacker, with encoder-based length control and a PLC line controller.
5.Q: Can it cut different lengths within one coil?
A: Yes. Sheet length is set from the control screen and the shear follows the measured strip, so a coil can be run to one length and switched to another at the next cut.
Build standards and working accuracy
Which components and brands go into a cut to length line?
Structural parts are welded to a minimum throat of two thirds the thinner plate, shot-blasted before painting and finished with two top coats. Uncoiler, slitter and recoiler shafts are forged 42CrMo and supplied with a material certificate; gears are 20CrMnTi, case-hardened and ground. Bearings, hydraulic, pneumatic and electrical parts come from named suppliers — Yuken valves, AirTac cylinders, HIWIN linear guides, Mitsubishi or Siemens PLC, Proface HMI, OMRON sensors — and the final bill of components is fixed on the approved drawing for each line.
Which shear and leveling arrangement does the line use?
A medium gauge line uses a servo track flying shear that follows the leveling speed and cuts on the move; heavy gauge plate is leveled twice, pre-leveling and fine leveling, to relieve internal stress before shearing, and stainless or aluminium coil is edge trimmed ahead of the cut. The arrangement follows the gauge, the material and the surface the sheet has to keep.
How is the line installed and supported after delivery?
Engineers attend the customer's plant to supervise installation and train the operators on the line as built. Spare parts are supplied at any time, and remote technical support stays available for the life of the machine.
