A double ratio shift speed slitting machine is a specialized type of slitting equipment used in metal processing, designed to offer two distinct speed modes for different stages of the slitting process. This feature allows the machine to operate at a higher speed during less critical phases (such as feeding or rewinding) and a lower, more controlled speed during precision tasks (such as slitting or edge trimming). The “double ratio shift” refers to the ability to switch between these two speed settings, optimizing both productivity and precision. Now factory ready produced (5-14)x2000mm steel coil slitting machine is just designed with this double ratio shift speed which can run both speed 30m/min and 60 m/min.  This slitting machine is designed for hot rolled/ cold rolled carton steel, galvanized steel, of thickness 5-14mm, coil width 2000mm, coil weight maximum 40tons. The whole slitting line machine is composed of 40ton double mandrel decoiler, gantry type coil end guide, pressing&shoveling device, double roller pinch& five roller leveler, coil end shear device, side aligning device, disc slitting device, scrap winder, pre-separator, five roller tensioner, deflector encoding roller, recoiler, hydraulic system, PLC control system, etc.

Equipped with advanced 4-axis machining centers which can produce the work piece maximum size of 6 meters long x 3 meters wide, we make one time machining for the key important parts of all the shafts for decoiler, slitting, and recoiler, which ensure high precision of the final machine.

JINYE builds coil slitting lines and cut to length lines in Wuxi, China, and has supplied them to customers in more than 100 countries since 2000.

Send the coil thickness, strip width and required output, and we will reply with a recommended configuration and a quotation.

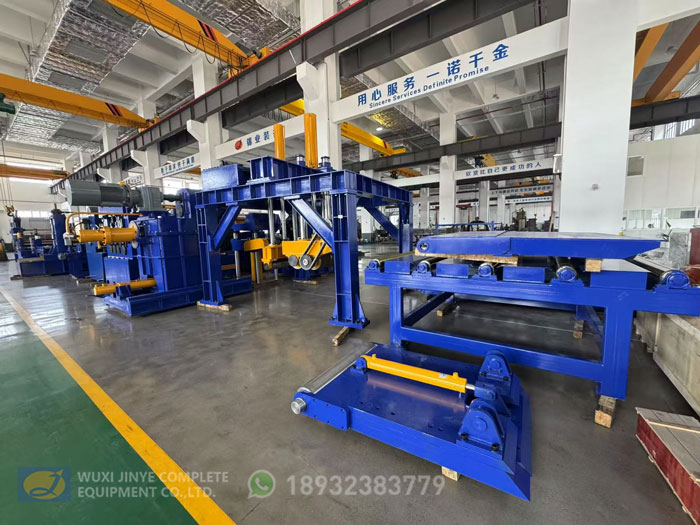

5-14 x 2000mm Slitting Line with Double Ratio Shift (photo 2)
