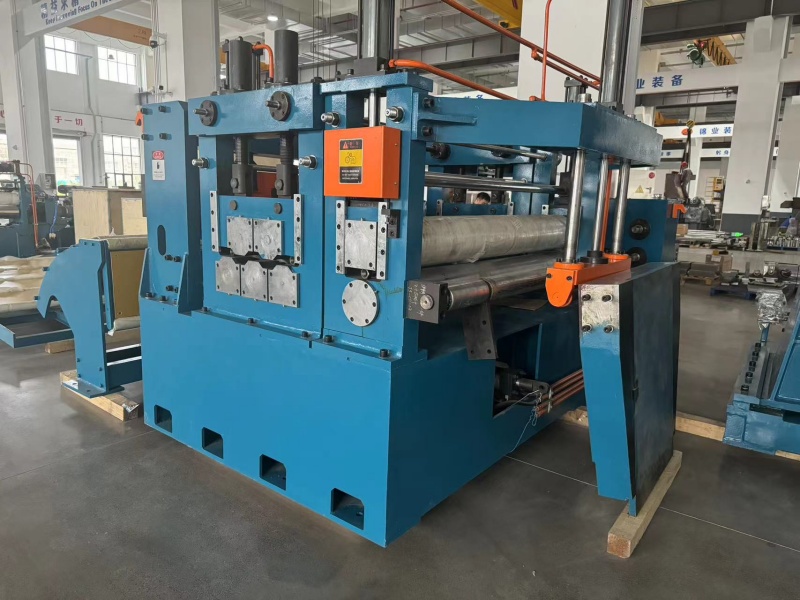

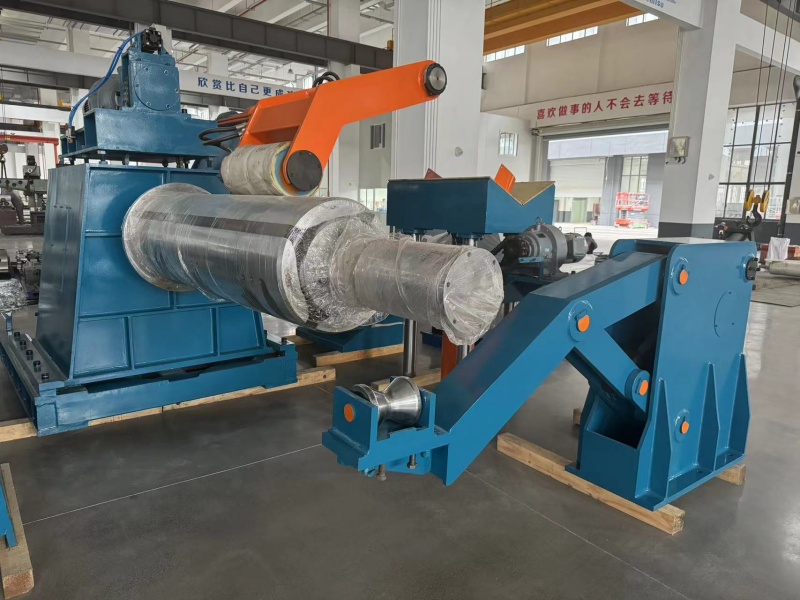

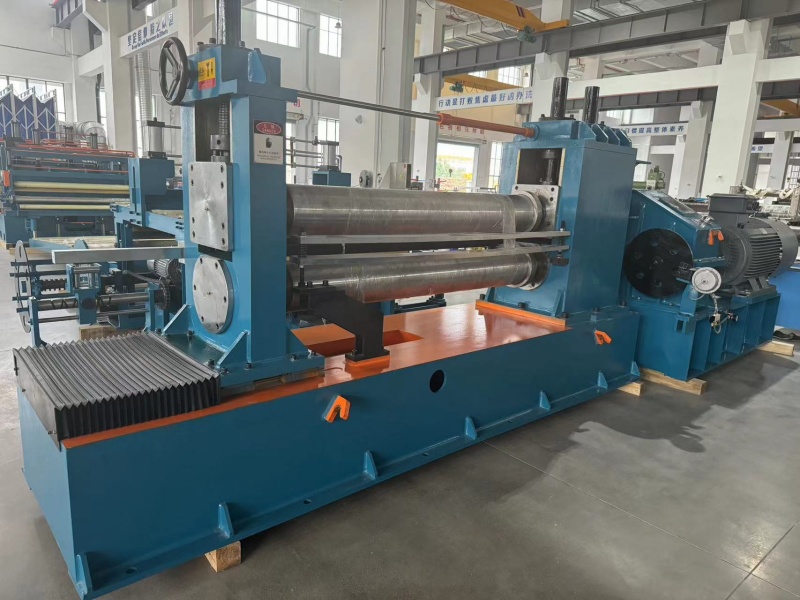

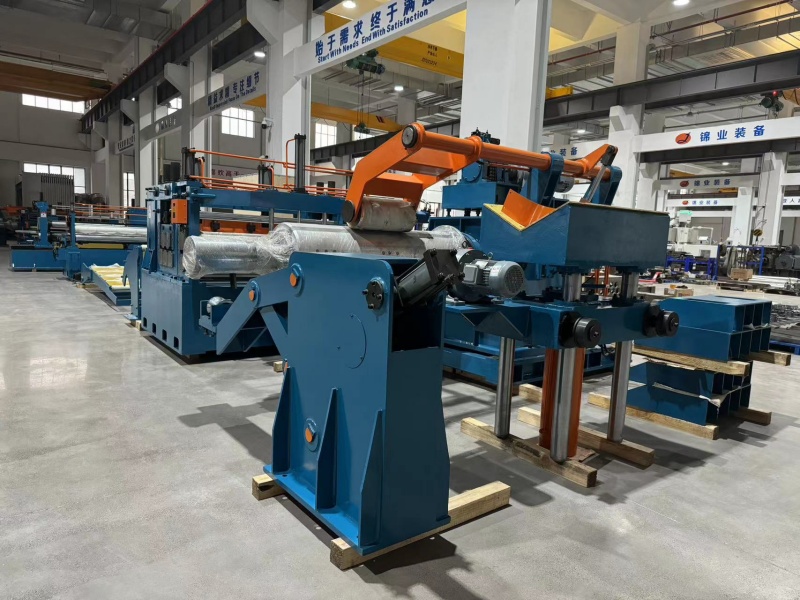

Improved 0.3-3 x 1650mm Steel Coil Slitting Line, Iran

One more set improved type steel coil slitting line machine of coil thickness 0.3-3.0mm, coil width 1650mm is finished production and ready shipment to Iran customer.

This improved type slitting line machine has the advantage of high-precision and high speed of 180m/min maximum. This line is suitable for slitting the material of plain carbon steel(cold rolled, hot rolled), GI, PPGI, etc. with max yield strength of 350Mpa and max tensile strength 600Mpa. Total power of the whole slitting line is 280Kw, and it occupy the area of 28000mm length x 8000mm width.

The whole slitting line is composed of Coil preparing saddle, coil-loading car , decoiler, coil-head straightening and shoveling device, double pinch rollers & 5 rollers leveler with coil head shear, first pit accumulator, side guide before slitter, main slitter machine, edge scrap winder, second pit accumulator, pre-separator&tensioner, recoiler, electrical control system, and hydraulic system, etc.

JINYE designs and builds coil slitting lines and cut to length lines at its works in Wuxi, China, test-running every line as a complete unit before shipment. The company has been building coil processing equipment since 2000 and sells in over 100 countries.

Share your coil thickness, width and target output and our engineers will propose a line configuration with a price.
