Repeat Order: Cut to Length Line for Indian Customer

Thanks for Indian Customer’s continued trust in our machine quality and services, we are delighted to receive their repeat order for an additional Cut-to-Length Machine—this is a testament to the quality and performance we strive to deliver.

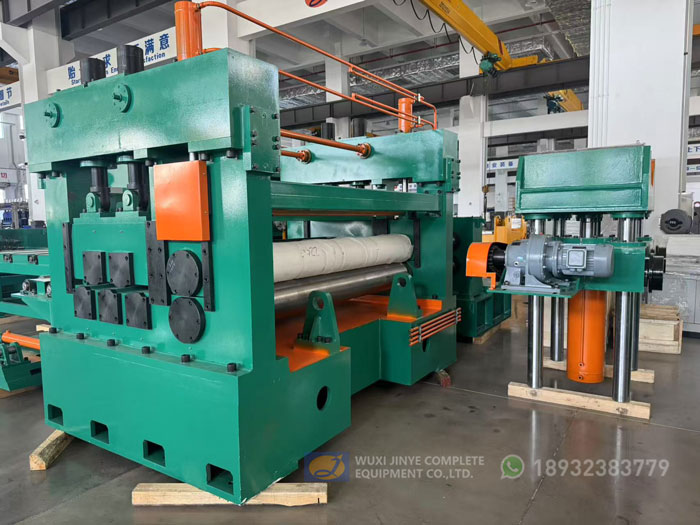

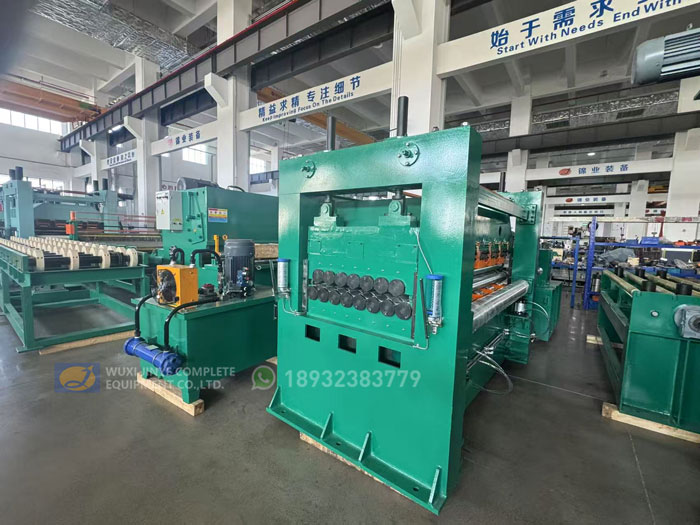

This Steel Coil Cut to Length Line Machine is designed to cut to length for carbon steel thickness 1-12mm, coil width maximum 2000mm. Due to the big range of material thickness, to ensure good leveling quality, we have designed two levelers for customer, one leveler for thickness 1-3mm, another leveler for thickness 4-12mm.

This (1-12)x2000mm steel coil cut to length machine is composed of 30 Tons double mandrel decoiler, 5 rollers leveler, pit loop, two levelers, encoder table, shearing machine, transport table, outer stack, hydraulic system, electrical control system, etc.

Technical Advantage of this (1-12)x2000mm Cut to Length Machine:

1. All welded structural parts of this steel coil cut to length machine are tempered in a large tempering furnace after welding to completely eliminate welding stress and will not affect the stability of equipment accuracy due to the release of residual internal stress and deformation.
2. All big parts are machining by huge machine tool or CNC center one time completely to ensure the machining precision.

JINYE has been building coil slitting lines and cut to length lines in Wuxi, China since 2000, and supplies customers in more than 100 countries.

Tell us your coil thickness, strip width and target output, and we will come back with a line configuration and a price.
